ASUS X99-A USB 3.1 ATX Intel Motherboards $189.99
- Amazon.com offers the ASUS X99-A USB 3.1 ATX Intel Motherboards for $189.99.
- Estimated shipping weight 4 lbs.
- 预计发货重量4磅。

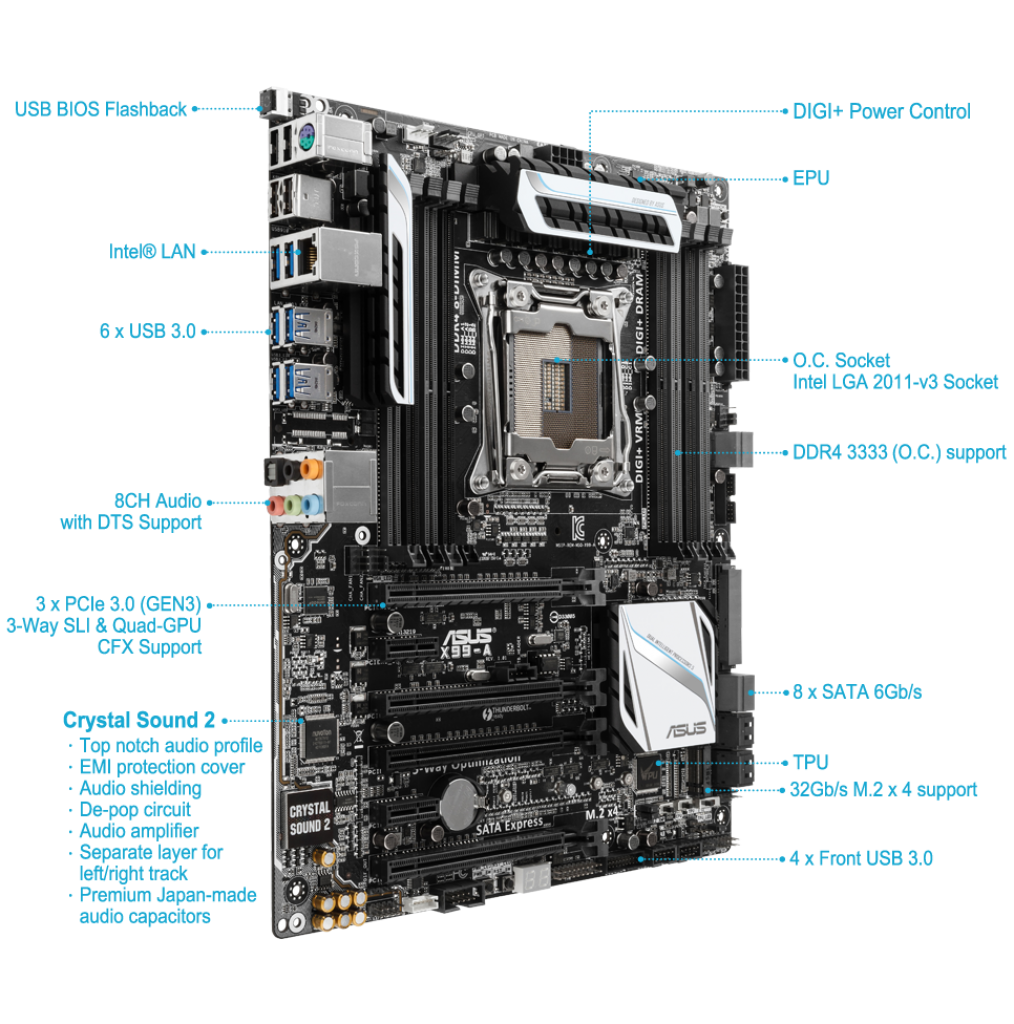

The ASUS X99-A USB 3.1 ATX Intel Motherboards has 10 Gb/s USB 3.1 built in and is designed to fit in standard sized ATX cases. The 12.0 x 9.6″ X99-A supports Intel Core i7 processors, the LGA2011-v3 socket, and the Intel X99 chipset. It has been designed to deliver power and speed to Internet browsing, extreme gaming, CAD software, and more. Power is critical for performance so the X99-A employs a Digital 8 Phase Power Design as well as an OC Socket that uses extra pins to connect a proprietary circuit to contacts found on Haswell-E’s land grid array (LGA). Combined with ASUS UEFI (Unified Extensible Firmware Interface), this feature enables DDR4 memory frequencies and helps lower latencies and enhance stability while overclocking. The motherboard also features 5-Way Optimization, which includes better CPU performance, power saving and digital power control, fan control, and system cooling. The ASUS X99-A is compatible with Windows 8.1, 8, and 7 operating systems.
The ATX form factor of the X99-A can support up to 64GB of RAM and comes with 8 x DIMM slots that can each hold up to 8GB of DDR4 3300 (O.C.), 3200 (O.C.), 3000 (O.C.), 2800 (O.C.), 2666 (O.C.), 2400 (O.C.), and 2133 MHz non-ECC, unbuffered memory. The X99-A also has a total of 8 x SATA III 6 Gb/s ports, 1 x SATA Express connector, 1 x M.2 connector that only supports PCIe SSDs, 2 x USB 3.1/3.0/2.0 ports, 8 x USB 3.0/2.0 ports, 8 x USB 2.0/1.1 ports, 5 x audio jacks, 1 x S/PDIF out, and 1 x Intel I218V Gigabit LAN port.
To provide data redundancy, RAID 0, 1, 5, and 10 modes are supported and PCIe expansion is dependent on whether a 40 or 28-lane CPU is installed. When a 40-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) lanes. When a 28-lane CPU is installed, users will have access to three PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x4), one PCIe 2.0 x4 (x2 mode), and two PCIe 2.0 x1 lanes. While this motherboard does not have any video out ports, it does have multi-GPU support for NVIDIA Quad-GPU SLI technology, NVIDIA 3-Way SLI technology, AMD Quad-GPU CrossFireX technology, and AMD 3-Way CrossFireX technology.

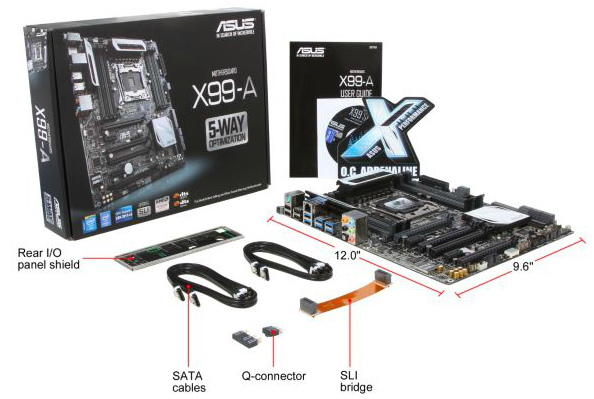

The X99-A Motherboard is also equipped with 1 x PS/2 port and the capability to support 4K graphics. It includes 4 x SATA 6 Gb/s cables, 1 x SLI Bridge, and 1 x Q-connector (2-in-1).
- ATX Form Factor
- Intel LGA2011-v3 Socket,Intel X99 Chipset
- Supports Intel Core i7 Processors,Supports DDR4-3300 (OC) Memory,Supports RAID 0, 1, 5, 10
- 3 x PCIe 3.0/2.0 x16 Slots,1x PCIe 2.0 x16 / 2x PCIe 2.0 x1 Slots
- Ultra-fast 10Gb/s USB 3.1 built in to the board
- Patent Pending OC Socket – Drive CPU and DDR4 performance beyond all expectations!
- 5-Way Optimization by Dual Intelligent Processors 5 – One click overclock and cooling, done!
- 32Gb/s ultrafast M.2 x4
- Crystal Sound 2 – Flawless audio that makes you part of the game!
- Total control anytime, anywhere with Remote GO!
这款华硕ASUS X99-A USB 3.1 ATX Intel Motherboards主板，是华硕X99系列主板中的性价比较高的一款产品，虽然主板的颜色和规格上无法和ROG系列相比，但是能在稳定超频的情况下，发挥主流硬件的实力。这款主板最大的特点是搭载了2个USB 3.1接口，能够带来10Gb/s的速度，支持最新的i7处理器，支持DDR4-3300（超频）内存，支持RAID 0,1,5,10规格。主板有4路M.2接口，使用DIGI数字供电，一键优化CPU等，在中档价格的情况下，提供了丰富的功能和接口。
ASUS X99-A/USB 3.1 ATX DDR4 3300 (o.c.) Intel LGA 2011 Motherboards
- Ultra-fast 10Gb/s USB 3.1 built in to the board
- Patent Pending OC Socket - Drive CPU and DDR4 performance beyond all expectations!
- 5-Way Optimization by Dual Intelligent Processors 5 - One click overclock and cooling, done!
- Ultra-fast 10Gb/s USB 3.1 built in to the board
- Patent Pending OC Socket - Drive CPU and DDR4 performance beyond all expectations!
- 5-Way Optimization by Dual Intelligent Processors 5 - One click overclock and cooling, done!
- 32Gb/s ultrafast M.2 x4
- Crystal Sound 2 - Flawless audio that makes you part of the game!
- Total control anytime, anywhere with Remote GO!
